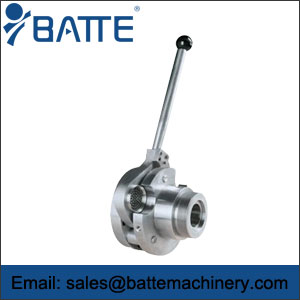

Manual control screen changer
Manual screen changer provides a cost effective filtration solution for the polymer extrusion industry. Manual screen changers (manual control screen changer) can filter contamination which affects the quality of the product.

Manual screen changer

Manual screen changer application and features:
Easier installation and easier operation.
The operation handle can be adjusted according to the workshop position.
With its unique rigid material or compensation sealing design, the service life is long.
The position is precise during screen changing.
It is applicable for 90 mm extruder or less than 90 mm extruder plant
Less occupied space and easy to operate.
Extrusion production line adopted this type screen changer is applicable to all kinds of high viscosity melt.
The manual screen changer, as the name suggests is the direct manual switch net changing device. The manual screen changers have small volume, low cost and other advantages, but its shortcomings are obvious: changing the net speed is slow, the general need for machine network, due to friction and sealing performance considering the filter diameter generally less than 100mm.

Manual control screen changers specifications:
Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
Ф(mm)
 cm2
V
W
ZB-MSPG-40
30~60
140
200
Ф50
20
230/380
1700
ZB-MSPG-50
35~70
150
200
Ф50
20
230/380
1700
ZB-MSPG-60
60~180
170
255
Ф60
28
230/380
2500
ZB-MSPG-70
80~180
170
255
Ф70
38
230/380
2500
ZB-MSPG-80
100~180
175
300
Ф90
64
230/380
2500
ZB-MSPG-90
110~180
175
300
Ф90
64
230/380
3000
ZB-MSPG-100
120~230
180
320
Ф100
78
230/380
4200
