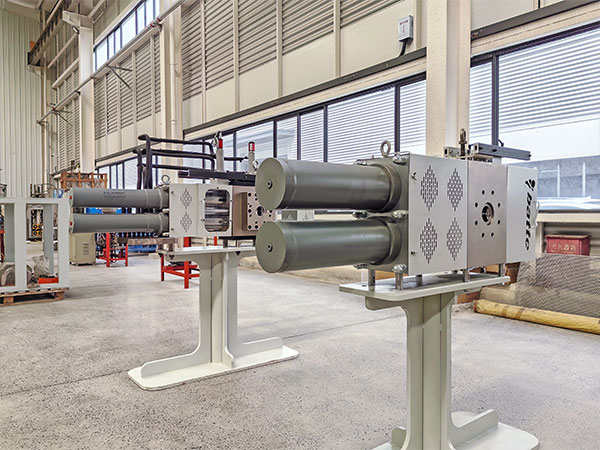

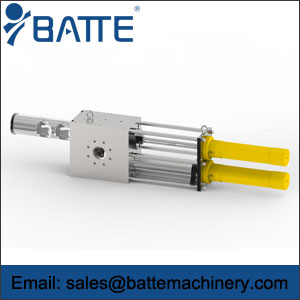

Double piston screen changer with four screen cavities
Double piston screen changer with four screen cavities is two working position screen changer with four channels and four filters. Double column large capacity screen changer is the special type, and can reduce the frequency of changing the screen.

Double piston four working position screen changer

Double piston screen changer with four screen cavities features, advantages, and applications:
The design is four channels and four filters. The four filters are working simultaneously without stopping material flowing or mass production. Thus the non-stop screen changing can be achieved.
The exhaust air system is able to fully discharge the air inside the material or perforated plate which is to be replaced. It can avoid air forming in the product during screen changing, thus improve the product quality.
Four channel design greatly increase filtering area, and meet the higher quality or quantity production demand.
Bigger filtering areas are applicable for different material or extrusion products.
It has better sealing characteristics with rigid sealing. The service life is longer.
It has material filling, air exhausting and impure material discharging function, which guarantees continuous production during screen changing.
It is applicable for high productivity, high efficiency, high quantity and continuous production of large extrusion plant.
It has reasonable structure design, easier operation and better working effect.
We can customize various sizes or standards based on the client’s requirement.
It is configured with safety protection cover design.
It is used for chemical fiber, blown film, flat film, cast film, pipe, plate, wire, fiber, granulating, recycling pelletizing, etc.

Double pillar four working piston hydraulic screen changer technical parameter:
Type
Output
Kg/h
Size (mm)
Screen size
Heating tube
L1
L2
L3
Ф(mm)
cm2
Quantity
V
KW
ZB-DP-4R-120
260~760
180
1160
220
Ф100
78×4
6
230/400
1.0/1.3
ZB-DP-4R-145
580~1400
225
1420
270
Ф125
123×4
6
230/400
2.0/2.4
ZB-DP-4R-170
750~2000
260
1595
310
Ф150
177×4
6
230/400
3.0/3.5
ZB-DP-4R-195
1350~3000
315
1890
380
Ф175
240×4
6
230/400
3.5/4.0
ZB-DP-4R-220
1650~3800
350
2100
410
Ф200
314×4
10
230/400
3.5/4.0
ZB-DP-4R-250
2100~5200
405
2395
460
Ф230
415×4
12
230/400
3.5/4.0
ZB-DP-4R-280
4500~8500
450
2760
500
Ф250
490×4
12
230/400
4.2/5.0

Large capacity screen changers Characteristics and applications:
The screen changer design for double column filter tube structure, large filtration area, reduce the frequency of changing the net, for increasing the network time interval, which can realize non-stop screen changer. It is designed with a material discharge device, fully exclude material gas, can thoroughly solve the problems when changing the net easy to produce bubble, to ensure product quality, improve product stability.
These continuous screen changer products are suitable for PP, PE, PS, PET and other plastics, especially for drawing and special dirty material recycling granulation and other conditions.
