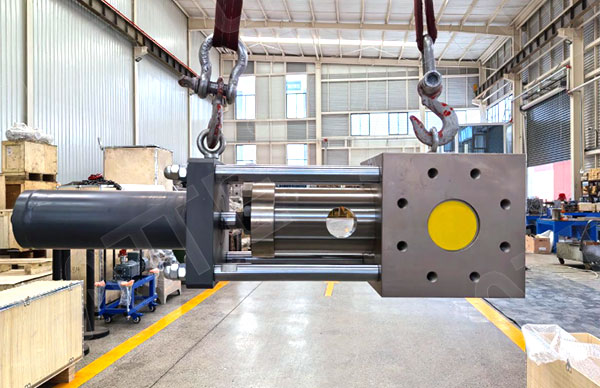

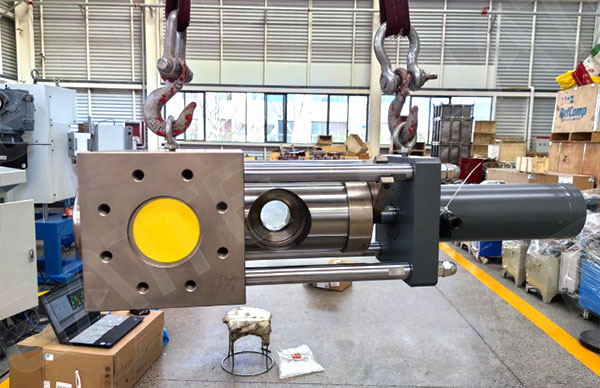

Single column screen changer
Single column screen changer is the core non-stop filtration equipment of polymer material extrusion production line, suitable for most continuous production scenarios of thermoplastic materials. The following provides a comprehensive analysis based on technical details and industry applications.
1、 Core Definition and Working Principle
Equipment positioning: A continuous filtration device designed specifically for polymer extrusion processes such as plastics, rubber, and synthetic fibers. Its core function is to quickly switch the filter screen without stopping the machine, intercept impurities in the melt, and ensure production continuity.
Dual station alternating mechanism: During normal production, one set of filter screens filters impurities inside the flow channel, while the other set is preheated outside the flow channel for backup. When the pressure difference reaches the threshold of 0.5-3MPa, the hydraulic system automatically starts switching.
Quick screen changing feature: The entire screen changing process only takes 0.6-3 seconds, with pressure fluctuations controlled within ± 0.15MPa, and the material flow is basically not interrupted, greatly reducing downtime losses.
2、 Key structural and performance parameters
Sealing and Material: Adopting a rigid sealing structure, the main body is integrally formed with high-temperature alloy steel, which can withstand a maximum working pressure of 50MPa and a working temperature of 350 ℃ -400 ℃ without the risk of melt leakage.
Channel design: Straight through, no dead corners channel, no material retention, avoiding degradation and carbonization of heat sensitive materials, suitable for processing high viscosity and easily decomposed materials.
Space and maintenance: Compared to the double column structure, it saves about 40% of installation space, and the modular design allows for seal replacement in only about 2 hours, resulting in lower maintenance costs.
Basic parameters: Suitable for melt viscosity ranging from 100 to 40000 Pa · s, supports both electric heating and heat medium heating methods, and is compatible with various extruders with diameters ranging from 35mm to 300mm.
3、 Mainstream types and adaptation scenarios
Circular single column screen changer: The filter screen is designed in a circular shape with strong versatility, suitable for standard filtration scenarios such as ordinary granulation and conventional pipe materials.
Long strip single column screen changer: The filter screen is in the form of a long strip, which expands the filtering area within a limited structural size, prolongs the screen replacement cycle, and is suitable for large-scale film production lines.
Curved/cylindrical single column screen changer: specially customized for special extruder structures and high flow melt conveying scenarios, with stronger installation adaptability.
4、 Core application areas
Film manufacturing: Suitable for the production of BOPP, PE blown film, PET cast film, photovoltaic film, and medical packaging film, effectively reducing crystal dot black spot defects and improving film surface uniformity.
Pipe profiles: used for PVC water supply pipes, ABS profiles, plastic corrugated pipes, and sheet extrusion to ensure product surface smoothness and dimensional accuracy.
Plastic granulation: widely used in ordinary plastic granulation, recycled plastic recycling granulation, color masterbatch blending granulation, filtering impurities in recycled materials, and improving the quality of recycled materials.
Chemical fiber spinning: Suitable for long/short fiber spinning processes such as polyester, nylon, polypropylene, etc., to prevent clogging of the spinneret and reduce wire breakage faults.
Special material processing: can be used for extrusion production of hot melt adhesives, adhesives, rubber sealing strips, and rubber hoses to avoid material retention and degradation.
