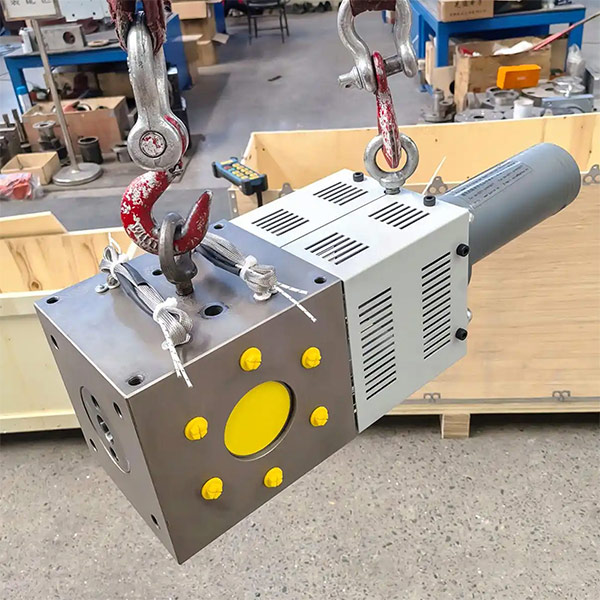

What is a start up valve?
the start-up valve is a key safety device that safeguards the stable operation of the extrusion production line. It ensures the purity of raw materials through startup discharge, automatically releases pressure to protect core equipment in case of overpressure, achieves upstream and downstream isolation to reduce full line shutdown in case of failure, and can accurately regulate material flow and direction. It is an important equipment for improving the stability of continuous production in underwater cutting, modified plastics and other processes.
Start-up valve valve, mainly responsible for four core functions
1. Start up and discharge materials to ensure the purity of raw materials
When the production line is just started, there will be oxidized and deteriorated materials and old materials left in the barrel from the last production. The start-up valve can discharge these unqualified melts from the discharge port during the start-up phase. When the material quality meets the standard, it can switch to the normal production flow channel to ensure the purity of the officially produced materials and reduce defects in the finished products.
2. Overpressure relief to protect upstream core equipment
Once the pressure at the front end of the screen changer and melt pump sharply rises during production, exceeding the safety threshold of the equipment, the start-up valve can automatically open to discharge and release pressure, quickly releasing excessive pressure, avoiding damage to expensive core equipment such as extruders and melt pumps due to overpressure, and reducing downtime maintenance costs.
3. Fault interlock reduces downtime across the entire line
Especially in underwater pellet production scenarios, when encountering sudden faults such as mold blockage or abnormal water temperature, the start-up valve can quickly switch to the discharge station. The upstream extrusion equipment does not need to be shut down, and the material is directly discharged from the discharge port. After the downstream fault is resolved, production can be quickly resumed, greatly reducing the production capacity loss caused by downtime.
4. Precise control of material flow and direction
By adjusting the position of the plunger, the driving valve can accurately control the melt flow rate; At the same time, the direction of material outflow can be switched, facilitating the production conversion of different batches and grades of materials, and adapting to the flexible production needs of multiple varieties.
The working principle of the start-up valve
Normal production conditions of dual station flow channel structure: the flow channel is conductive, and the molten material is transported to downstream processing equipment such as mold heads and cutting machines; Discharge cleaning condition: Switching the flow channel to a 90 ° lateral outlet, the molten and residual materials inside the barrel are directly discharged outward.

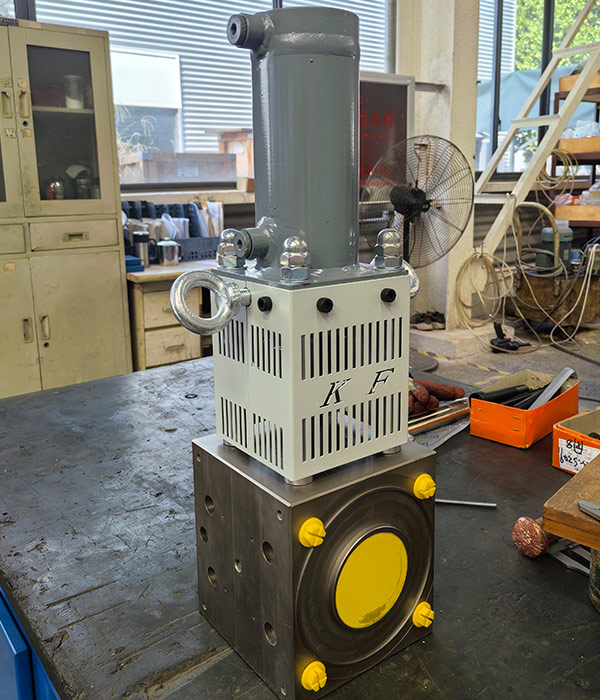

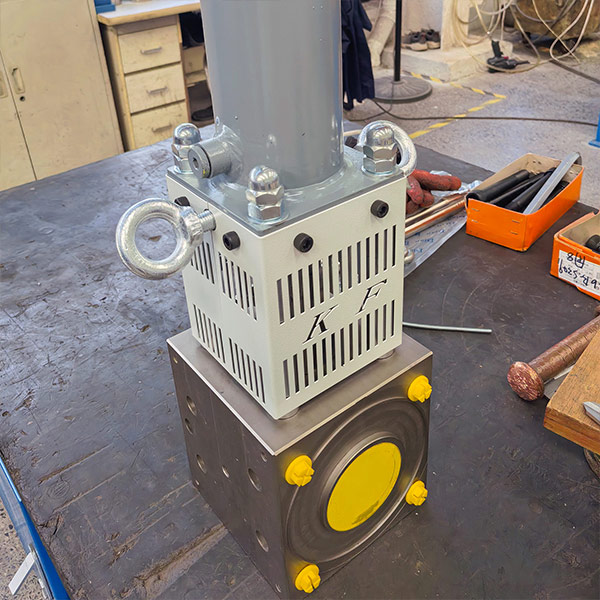

Hydraulic driven quick switching valve station switching relies on the hydraulic system to drive the slider. By operating the hydraulic station reversing handle, the production/discharge two stations can be quickly switched, with fast response speed and convenient operation.
The uniform temperature control design supports two schemes: electric heating and heat medium heating. Thermal oil heating can achieve 360 ° no dead angle "surface heating", controlling the temperature difference of the valve body within ± 1 ℃, avoiding the cooling and solidification of the melt, and ensuring smooth and unobstructed flow channel switching action.
When do I need to choose a start-up valve?
Underwater pellet extrusion production line
A modified plastic production line that requires frequent material and color changes
Extrusion process with large fluctuations in production pressure and high requirements for equipment safety protection
Continuous production scenario where the entire production line is shut down without downstream failures
The start-up valve may seem like just a valve on the pipeline, but it is a safety buffer device for extrusion production lines. It can not only clean up residual materials during the start-up phase to ensure product quality, but also protect the entire host equipment in case of abnormal pressure or downstream faults. It is an indispensable supporting equipment for improving production stability in extrusion processes such as modified plastics and granulation. If you are building an extrusion production line or optimizing existing equipment configuration, the selection of start-up valves, interface specifications, and temperature control schemes need to be comprehensively matched with your melt material and working pressure.
