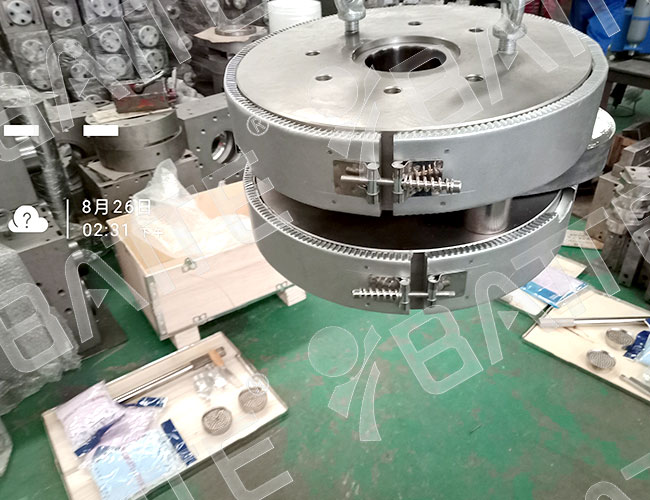

plastic extrusion manual screen changer
The manual quick-change screen changer is suitable for the production of low-volume products such as sheets, films, pipes, filaments, bare rods, and cables.
Suitable materials include: PP, PE, ABS, PS, PET, PVB, PBT, TPE, PMMA, PC, PA, etc.

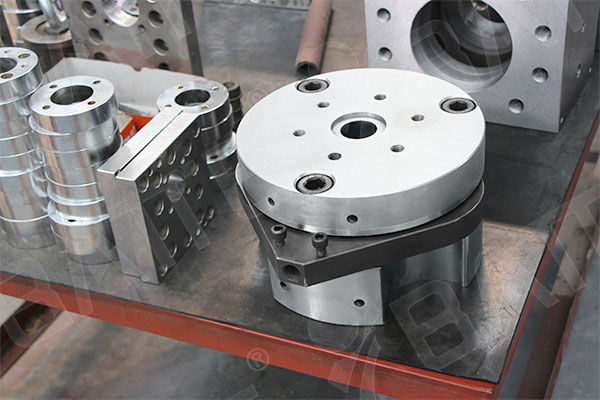

Manual Quick-Change Screen Changer Structure: The manual screen changer consists of basic components such as the inlet plate, outlet plate, slide plate, perforated plate, positioning shaft, and lever. The slide plate features two filter channels, each fitted with a perforated filter plate (screen plate). Under the action of the lever, the two perforated plates can alternately move into the working position and the screen-changing position.
The manual screen changer features two channels on the movable slide plate for the flow of polymer medium. Through a manual switching mechanism (lever), the two working positions alternate between active and standby states. The polymer medium is filtered through the screen to clean the medium and produce high-quality products. The screen changer is installed between the extruder and the die.
Performance Features of the Manual Quick-Change Screen Holder
Equipped with an elastic sealing mechanism, it supports high-output production of various polymers and is compatible with extruders of different standards.
Easy to install and operate.
The product features a compact design with a small footprint.
The operating handle can be adjusted to suit the on-site layout.
Ensures precise positioning during screen replacement.
Filter diameters range from φ50 to φ90.
The high-wear-resistant, high-pressure-resistant, and high-precision screen design enhances filtration quality.
Operational performance remains unaffected under pressures up to 25 MPa and temperatures below 300°C.
